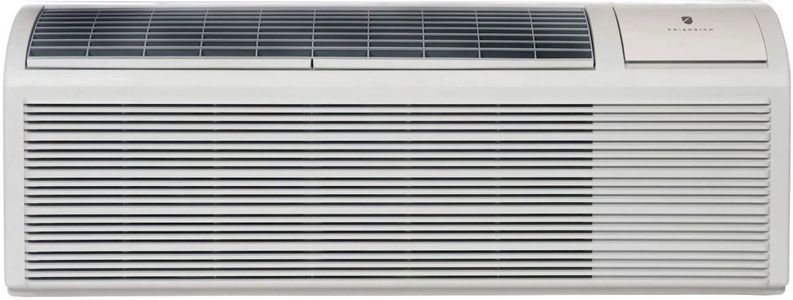

Friedrich ZoneAire® Premier 7,200 BTU White Package Terminal Air Conditioner


Model #:

PDE07K3SG

Model #: PDE07K3SG
338505
Friedrich
$99,999.00

At a Glance

Product Dimensions 16"h x 42"w x 13.75"d

Our most efficient standard PTAC with exceptional performance and leading warranty for the lowest cost of operation. ZoneAire Premier PTAC is available in electric heat and heat pump options, ranging from 7,000 to 15,000 Btu.Read More

Call for Best Price

What We Offer

Protect Your Purchase
None Selected
Services
None Selected

Get to know this product.

Product Overview

Product Overview
Durable Construction

Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish, and are oven-cured at high temperature for exceptional durability. Aluminum endplates reduce corrosion of the outdoor coil.

Comfort & Convenience

Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.

Sound Reduction Technology

Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise.

Warranty & Support

Friedrich’s industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.

Maintenance and Installation

Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System® securely attaches the front each time. Unit may be installed low to the floor.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)106
Width (in.)42
Appliance ColorWhite
Installation TypeWall Mounted
Cooling Capacity (BTU)7200/7000
Depth (in.)13.75
Height (in.)16
ColorWhite
Frequency60
Amp2.7/2.9
Manufacturer Warranty2 Year
CollectionZoneAire® Premier
Plug TypeNEMA 6-20
Color Finish NameWhite
Air Conditioner TypeThrough-the-Wall
Maximum CFM300
BTU Cooling Rating7200/7000
Voltage208/230
Heater IncludedYes

Overview

Cooling BTU14500/14200
Heating BTU11700/8300
Volt Range253-187
Cooling Watts550/535
Reverse Heating Amps15.0/13.6|10.7/9.7
Reverse Heating Watts3450/2450
Compressor LRA13
Compressor RLA2.5
Moisture Removal1.7 Pints per hour
Indoor CFM High345
Indoor CFM Low315
Sensible Heat Ratio0.86
Vent CFM75
Cooling Area (Sq Ft.)250-300
WarningProposition 65 Warning for California Residents
